Transmille 3200 Series Multi Function Electrical Test Calibrator with 17th Edition Compliance, Auto Loop Correction, and Digital Waveform Capture

  • 1
  • 2
  • 3

Continuity Resistance : 0.02Ω to 20Ω (variable), 100Ω, 1kΩ fixed

RCD Current Range : 3mA to 3A

Software Support : ProCal Professional Calibration Software

Insulation Test Voltage : 50V, 100V, 250V, 500V, 1000V

PAT Earth Bond Current : 100mA, 10A, 30A

Compliance : 17th Edition / IEC 60364

Continuity Current : 0 to 320mA (into 1Ω)

Model Number : 3200 Series

RCD Trip Time : 20ms to 5s

Hi-Pot / Breakdown Voltage : AC/DC 3kV and 12kV (with optional adapter)

Options Available : HIACC, 10G Ohm, Auto Loop, 15kV Adapter, Flash Adapter, Breakdown Adapter

Payment Terms : T/T,L/C,PayPal,Western Union

Delivery Time : 3-7 working days for stock units, 15-25 days for calibration certification

MOQ : 1 Set

Loop Resistance : 10 precision resistance values with auto loop correction option

AC Voltage Output : 50V, 100V, 200V, 230V, 400V

Certification : UKAS, ISO 17025

Packaging Details : Export-grade foam-lined flight case with shock-proof insert, reinforced corrugated outer carton

Place of Origin : United Kingdom

Brand Name : Transmille

Calibrator Type : Multi Function Electrical Test Calibrator

Insulation Resistance : 10kΩ to 10GΩ (at 1000V)

Price : Negotiation

PAT Leakage : 2mA, 4.7mA, 7.7mA

Supply Ability : 50 Sets per Month

Contact Now

Transmille 3200 Series Multi Function Electrical Test Equipment Calibrator for Loop RCD PAT Insulation Testing
Product Overview

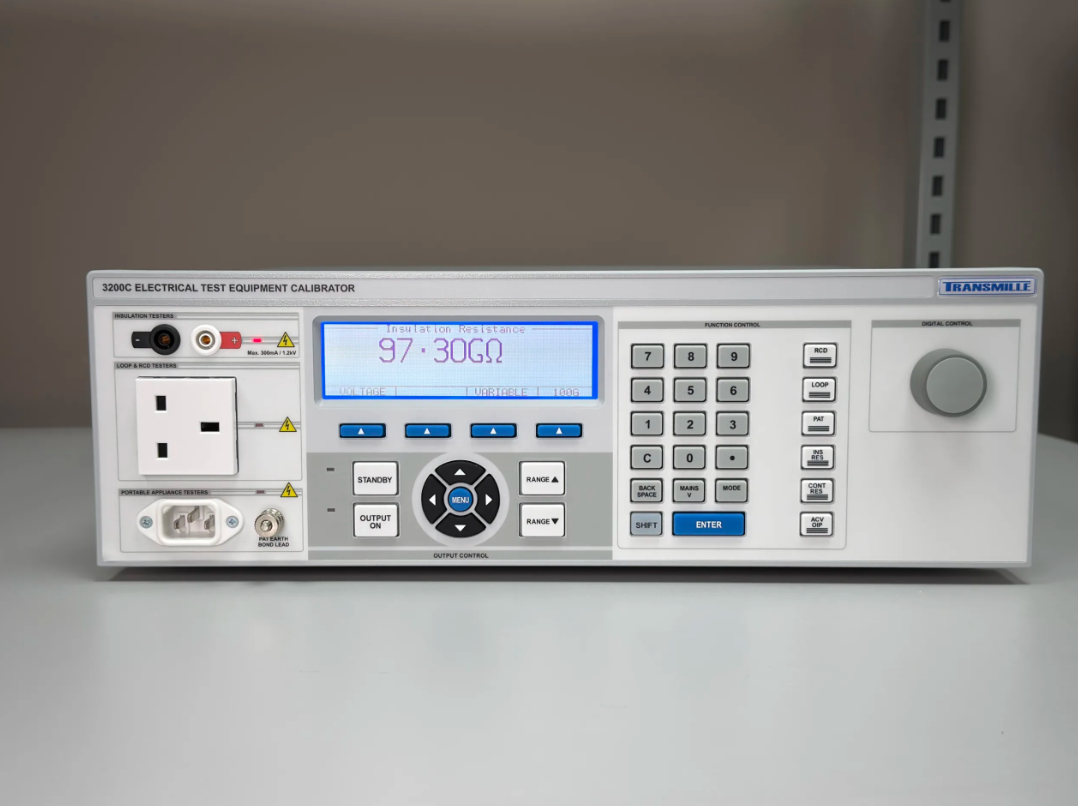

The Transmille 3200 Series is the industry-established multi function electrical test equipment calibrator, providing the fastest and safest solution for calibrating Loop and RCD Testers, PATs, Insulation Testers, and Hi-Pot/Breakdown testers. Designed and manufactured in the United Kingdom by Transmille—a calibration specialist with over a decade of experience—the 3200 Series dramatically reduces calibration time from 45 minutes to typically 15 minutes, delivering rapid return on investment.

Key Features
  • Multi Function Testing: Single-box solution for Loop, RCD, PAT, Insulation, Continuity, and Hi-Pot/Breakdown tester calibration
  • 17th Edition Compliant: Fully supports 16th and 17th Edition regulations for insulation test voltage measurement with one-button mode switching
  • Digital Waveform Capture: Built-in digital waveform capture and analysis for RCD testing ensures accurate measurements every time, automatically handling pre-trip tests and turn-on spikes
  • Auto Loop Impedance Correction: Optional auto loop measurement function provides accurate correction for supply line impedance
  • High Accuracy Reference: Superior stand-off ratio better than 4:1, essential for complete and accurate testing
  • Safe Operation: Direct socket connection for Loop, RCD, and PAT testers eliminates exposed high voltage risks. Front-panel floating earth stud for safe PAT earth bond testing
  • ProCal Software Ready: Compatible with Transmille ProCal Professional Calibration Software for fully automated calibration procedures, certificate generation, and database management
Comprehensive Calibration Functions
Function Specification
Continuity Resistance 0.02Ω (zero) to 20Ω variable, 100Ω and 1kΩ fixed outputs. Current measurement to 320mA
Insulation Resistance 10kΩ to 10GΩ continuously variable at 1000V. High accuracy option (0.1%) available
Insulation Test Voltage 50V, 100V, 250V, 500V, 1000V measurement with 16th and 17th Edition modes
RCD Testing Trip time 20ms to 5s, current 3mA to 3A with RMS and peak measurement
Loop Testing 10 precision resistance values with manual entry or auto loop impedance measurement option
PAT Earth Bond 10 precision values from 0.05Ω to 1kΩ, current measurement 100mA/10A/30A ranges
PAT Insulation 30kΩ to 2GΩ range
PAT Leakage 2mA, 4.7mA, 7.7mA ranges, test voltage 100V-300V RMS
Load Testing S/C, O/C, and 0.13kVA load for fuse check function
AC Voltage Output 50V, 100V, 200V, 230V, 400V
Optional Adapters and Upgrades
  • HIACC Option: High accuracy insulation resistance (0.25% continuity, 0.1% insulation)
  • 10G Ohm Option: Extended insulation resistance to 10GΩ (field retrofittable)
  • Auto Loop Option: Automated loop (Line-Earth) measurement
  • 15kV Insulation Adapter: Calibrate insulation testers up to 15kV, resistance up to 200GΩ (1TΩ with 10G option)
  • Flash Test Adapter: PAT flash voltage and current testing at Class 1 (1.5kV) and Class 2 (3kV)
  • Breakdown/Hi-Pot Adapter: Voltage measurement AC/DC to 12kV, current 200µA/2mA/20mA
  • External HV Probe: 12kV high voltage probe for direct measurement
Software and Connectivity

The 3200 Series integrates with Transmille's software ecosystem:

  • 3200CCP: 3200 Calibration Control Panel Software
  • PC-SU ProCal: Professional Calibration Software with procedure wizards, certificate printing, and M3003/GUM uncertainties
  • ProSite: On-site database management software
  • ProWeb: Web service data exporter
  • ProCal-Track: Laboratory management software
Accessories Included
  • Calibrated PAT test lead
  • Soft carry case (3200SCASE)
  • User documentation
  • UKAS calibration certificate available as optional service (CAL3200)
Transmille 3200 Series Multi Function Electrical Test Calibrator with 17th Edition Compliance, Auto Loop Correction, and Digital Waveform Capture Transmille 3200 Series Multi Function Electrical Test Calibrator with 17th Edition Compliance, Auto Loop Correction, and Digital Waveform Capture Transmille 3200 Series Multi Function Electrical Test Calibrator with 17th Edition Compliance, Auto Loop Correction, and Digital Waveform Capture
Transmille 3200 Series—the complete, safe, and cost-effective solution for electrical test equipment calibration. Contact us today for pricing, availability, and calibration certification options.
